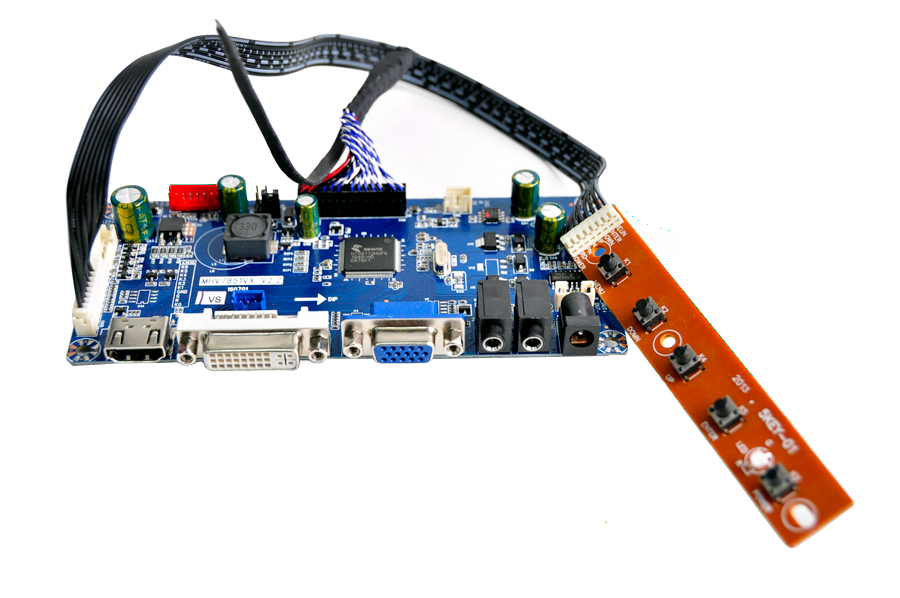

JCT-MHV7851 [보드&OSD포함] 동영상플레이어 보드

6월 15 업데이트됨




Specifications:


input signal: VGA: analog RGB (0.7Vp-p), + TTL, + DVI: TMDS +HDMI V1.4 Adobe color space


Support model: DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA, WSXGA+, WUXGA or more.


Color: 24-bit


horizontal frequency: 30-94.5KHz


field frequency: 56-75Hz


Output signals: dual-LVDS standard


Audio power output: (2W×2)(8ohm)


Control press-key: power, BRI+, BRI-, auto, NENU, LED_R, LED_G


OSD menu: brightness, contrast, auto, phase, clock, field position, function, reset


OSD language (option): Chinese, English, French, Italian, Arabian or more.


Power input: 12V(+/-0.6V)(DC)


Power operation model: normal


Product size: 143mm(L)x64mm(W)x16mm(H)


Plug & play: supported


Power management: standby <1W
