JSV-H310-COM10 ( 8,9th 10*COM )

최종 수정일: 2021년 10월 7일



일반 8,9세대 CPU/COM10(RS232*10)

Dual LAN / USB 3.0*4 & USB 2.0*6 / 16x EPCI / 2 * SATA / ATX Power


전용 케이스 JSV-1UR-WDC10 270*204*h65

JSV-TFX-LPC10 276*200*h100 (LP Slot)







JSV-TFX-LPC10 (TFX/ LP /10COM) 276*200*h100 (LP Slot)




JSV-1UR-WDC (Flux 1U/10COM) 270*204*h65

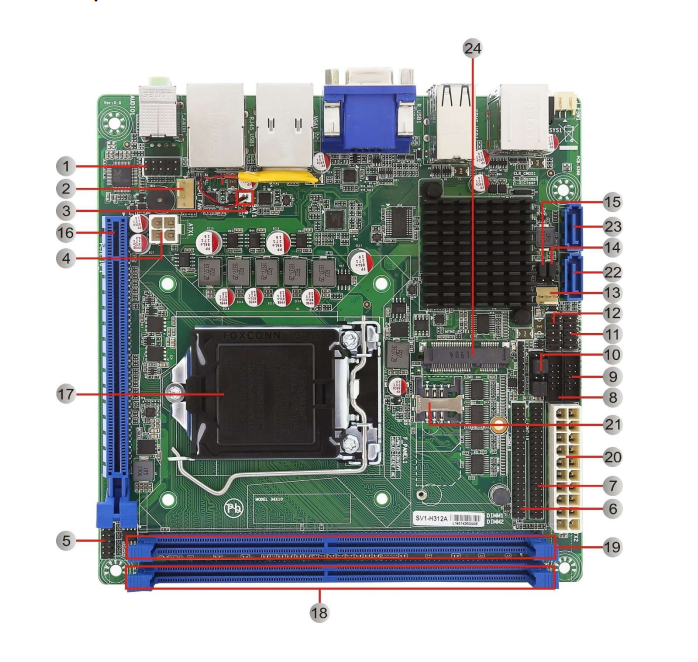

Specification

CPU

Intel 8-9th Generation Core i3/5/7/9, Pentium, Celeron Processors, LGA1151

RAM

Support DDR4-2400MHz [2], 2 * U-DIMM Slot, Up to 32GB

Display

1 x HDMI

1 x VGA

Storage

2 * Serial ATA 3.0 Port

1 * Mini PCI-E (mSATA)

Ethernet

2 * Realtek GbE LAN Chip (10/100/1000 Mbps)

BIOS

AMI UEFI BIOS (Support Watchdog Timer)

Audio

Realtek ALC662 5.1 Channel HDA Codec

Support Line-out/MIC Ports, Line-out/MIC Header

Expansion

1 * Mini PCI-E Slot (WIFI+4G)

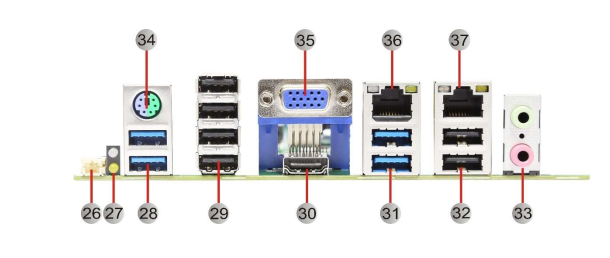

Rear Panel I/O

10 x RS232(RS232*10, RS232*9 RS485*1)

Front-Panel I/O

1 * PCI-E X16 slot

8 * GPIO

1 x HDMI

2 x Intel RJ-45

4 * USB3.1 Gen1 (Rear I/O)

6 * USB2.0 (Rear I/O) 2 * USB2.0 (Header)

ATX (20P + 4P) 1 * CPU 12V Power Input Connector (ATX 4P)

Power

ATX (20P + 4P)

Dimension

Mini-ITX (170mm * 170mm)

Environmental

Storage: -20~75℃

Operating: 0~60℃

OS

Windows 10(64 bit), Linux

JONATHAN C&T www.itxpc.co.kr

H310 Motherboard User Guide (Ver0.0)
.pdf
PDF 다운로드 • 2.00MB
