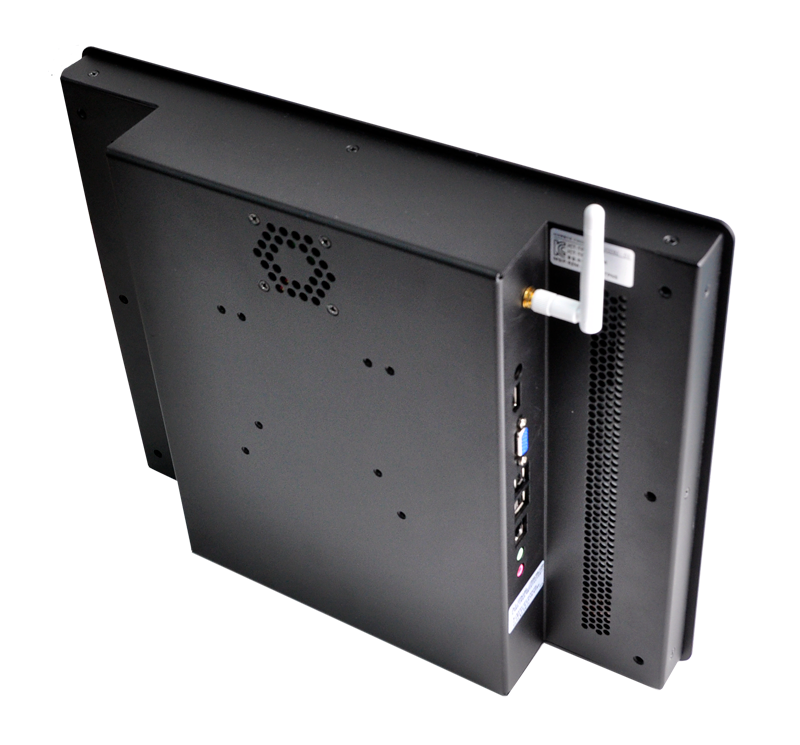

JCT-CPTN15/JIW1900 1024x768 250Cd 판넬컴퓨터







Active Area 304.1 (H) x 228.1(V) (15.0” diagonal)

Bezel Opening Area 307.4(H) x 231.3(V)

Driver Element a-Si TFT active matrix

Pixel Number 1024 x R.G.B x 768

Pixel Pitch 0.297(H) x 0.297(W)

Pixel Arrangement RGB vertical Stripe

Display Colors 16.2M / 262K

Display Mode Normally Black

Surface Treatment Hard Coating (3H), Anti-Glare

Module Power Consumption 7.4





Specification

CPU Intel Bay Trail J1900 Quad 2.0GHz

RAM 1 x So-DIMM, DDR3 1066/1333MHzMax. 8GB  DisplayDual

Display Support HDMI, VGA, LVDS1*VGA1*HDMI

Ethernet 1 x RTL8111F  Gigabit Ethernet

BIOS AMI 64MB DPI Flash ROM

Audio ALC662  2.1  Channel Codec1 x Line-out, 1 x Mic-in

Storage 1 x SATA (1*3Gb) 1 x MSATA Socket

Expansion 1 x MSATA, 1 x Mini-Pcie, 3 x F_USB2.0

10 x RS232, 1 x SATA, 1 x SATA PWR, 1 x JVGA

Rear Panel I/O 2 x USB2.01 x USB2.0 1 x USB3.01 x LAN (RJ45)1 x VGA 1 x HDMI1 x Line out 1 x Mic in

I/O Headers 10 x RS232 (1*RS485 Optional, 2*port DCD전원 가능)

3 x USB2.0 header(expand to 5 x USB2.0 connector)

1 x GPIO1 x LPT header1x PS/2 header

Power 1 x DC_IN 12V(4Pin ATX PWR)

Mechanical&Environmental 170mm x 170mm(LxW)

Temperature : -5℃ ~ 60℃ / Humidity : 0 ~ 95% ​

OS Windows 7, Windows 8 , Windows 8.1, Windows 10
