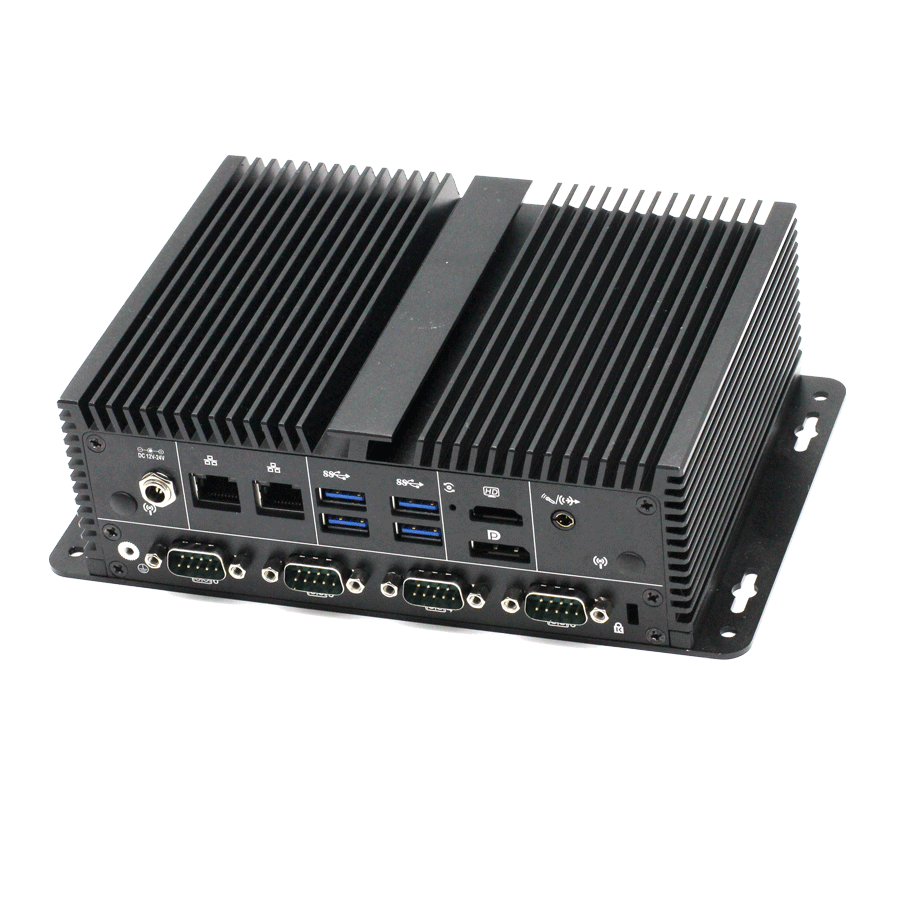

JZO-FN350 I5 8250U











Board size - 146 mmX102 mm

CPU -Support Intel®8th Whiskeylake/Coffeelake-U Core i3/i5/i7 Series CPU

RAM -1 xSATA

- 1 xM.2 Key B (SATA SSD or 4G)

- 1 xM.2 Key M (NVME&SATA)

- 1 xM.2 Key A,Support WIFI+Bluetooth

Rear I/O -2 xLAN

-4 xUSB3.1

-1 xDP

-1 xHDMI

-1 xAUDIO(Line out & Mic)

- 1 xCMOS

- 1 xDC

Internal I/O -1 xJPS1 PIN

-1 xGPIO PIN

-1 xF_PANEL PIN

- 3 xF_USB2.0 PIN(Support 6 xUSB2.0)

- 1 xSPEAKER PIN

- 1 xF-AUDIO PIN

- 2 xCOM PIN

- 1 xCOM_CONN PIN(4 xCOM)

- 1 xLVDS PIN

- 1 xINVERT PIN

- 1 xSATA PIN

- 1 xSATA_PWR PIN

- 1 xBKCL PIN

BIOS - AMI BIOS

Network -Onboard 1*i219,1*i211/210AT Gigabit LAN

Audio - Realtek ALC662

I/O Chip - ITE8786E-I

Power -DC 12-24V Power supply

Operating -Operating temperature:-10℃~60℃

-environment humidity:0%~95%

OS Windows 7 /Windows 10/Linux
