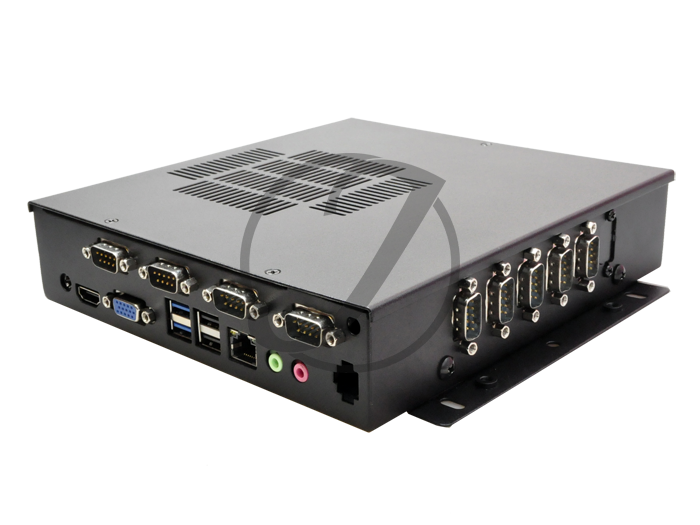

JCT-SL-JIW-J1000/J1900

최종 수정일: 2019년 8월 9일





=> M-SATA 장착 후 2.5" 하드 추가 장착 가능합니다.




KC인증 MSIP-REM-JPW-JCT-J1900




CPU Intel Bay Trail J1900 Quad 2.0GHz

RAM 1 x So-DIMM, DDR3 1066/1333MHzMax. 8GB

Display Dual Display Support HDMI, VGA, LVDS

1 x VGA

1 x HDMI

Ethernet 1 x RTL8111F  Gigabit Ethernet

BIOS AMI 64MB DPI Flash ROM

Audio ALC662  2.1  Channel Codec

1 x Line-out, 1 x Mic-in

Storage 1 x SATA (1*3Gb)

1 x MSATA Socket

Expansion 1 x MSATA, 1 x Mini-Pcie, 3 x F_USB2.0

10 x RS232, 1 x SATA, 1 x SATA PWR, 1 x JVGA

Rear Panel I/O 2 x USB2.0

1 x USB2.0

1 x USB3.0

1 x LAN (RJ45)

1 x VGA

1 x HDMI

1 x Line out / 1 x Mic in

I/O Headers 10 x RS232 (1*RS485 Optional, 2*port DCD전원 가능)

3 x USB2.0 header(expand to 5 x USB2.0 connector)

1 x GPIO

1 x LPT header

1x PS/2 header

Power 1 x DC_IN 12V(4Pin ATX PWR)

Mechanical&Environmental 170mm x 170mm(LxW)

Temperature : -5℃ ~ 60℃ / Humidity : 0 ~ 95% ​

OS Windows 7, Windows 8 , Windows 8.1, Windows 10
