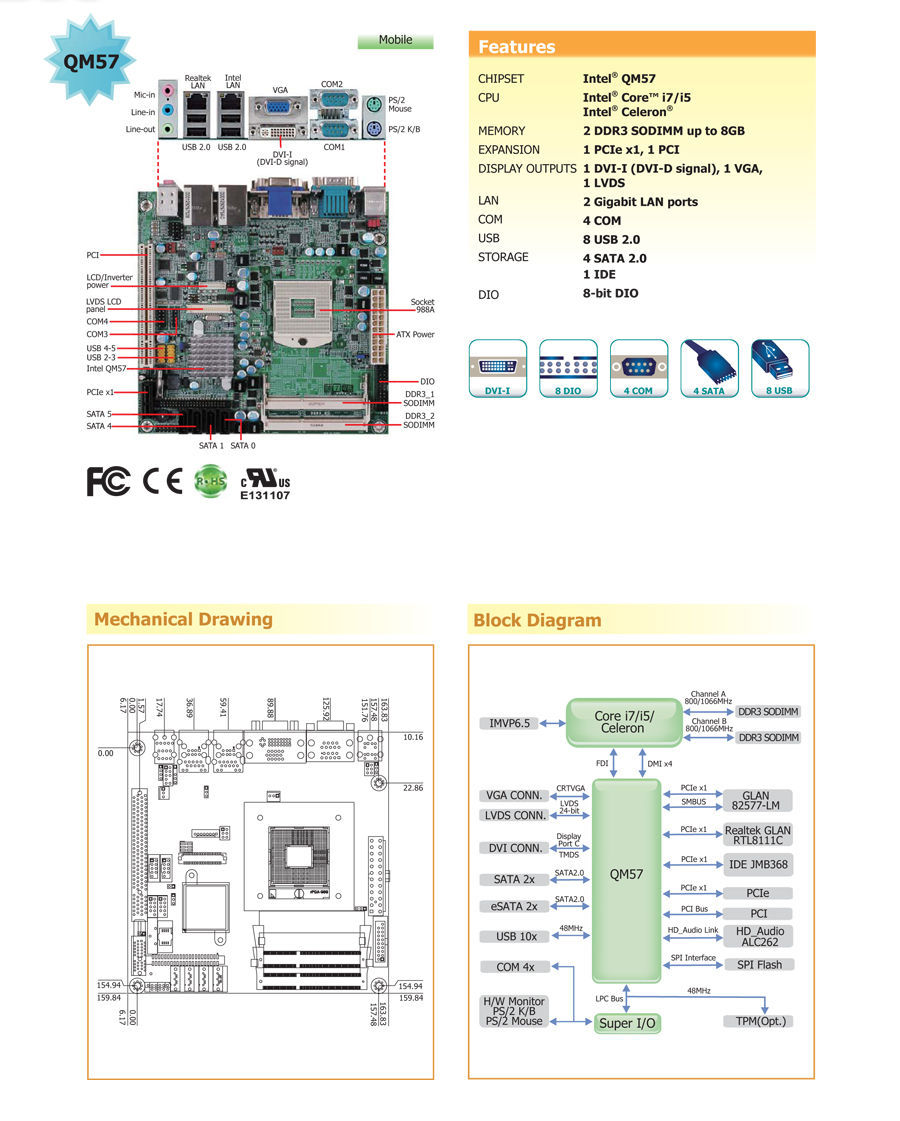

DFI CP100-NRM (QM57/DDR3/RGB/DVI/RS232*4)

http://www.itxpc.co.kr/goods/goods_view.php?goodsNo=1000000172

KC인증 KCC-REI-JPW-CP100-NRM (A)





PROCESSOR Socket G rPGA 988A for: - Intel® Core™ i7-620M (SV) - Intel® Core™ i5-520M (SV) - Intel® Celeron® P4500 (SV) Supports IMVP6.5 up to 35W CPU

CHIPSET Intel® QM57 Express chipset

SYSTEM MEMORY Two 204-pin SODIMM sockets Supports DDR3 800/1066MHz (PC3-6400/PC3-8500) Supports dual channel memory interface Supports up to 8GB system memory DRAM device technologies: 1Gb and 2Gb DDR3 DRAM technologies

are supported for x8 and x16 devices, unbuffered, non-ECC

EXPANSION SLOTS1 PCI Express x1 slot 1 PCI slot

ONBOARD GRAPHICS FEATURESI ntel® HD Graphics Display ports: DVI-I (DVI-D signal), LVDS and VGA VGA display resolution up to QXGA 2048x1536 LVDS: Single Channel - 18/24-bit; Dual Channel: 36/48-bit Intel® Clear Video technology Intel® Dynamic Video Memory Technology (Intel® DVMT) Intel® Smart 2D Display Technology (Intel® S2DDT)

SERIAL ATA (SATA) INTERFACE4 Serial ATA ports compliant with SATA 1.0a specification SATA speed up to 3Gb/s (SATA 2.0) Integrated Advanced Host Controller Interface (AHCI) controller Supports RAID 0/1/5/10

IDE INTERFACE

JMicron JMB368 PCI Express to PATA host controller DMA mode: Ultra ATA up to 100MB/s PIO mode: up to 16MB/s

INTEL ACTIVE MANAGEMENT TECHNOLOGY (AMT)

Supports iAMT6.0 Out-of-band system access Remote troubleshooting and recovery Hardware-based agent presence checking Proactive alerting Remote hardware and software asset tracking

TRUSTED PLATFORM MODULE (TPM)*

Provides a Trusted PC for secure transactions Provides software license protection, enforcement and password protection

REAR PANEL I/O PORTS1 mini-DIN-6 PS/2 mouse port 1 mini-DIN-6 PS/2 keyboard port 2 DB-9 RS232 serial ports (RS232 and/or Power) 1 DB-15 VGA port 1 DVI-I port (DVI-D signal) 2 RJ45 LAN ports 4 USB 2.0/1.1 ports Mic-in, line-in and line out jacks

I/O CONNECTORS2 connectors for 4 external USB 2.0/1.1 ports 2 connectors for 2 external serial ports - COM 3 supports RS232/485 1 LVDS LCD panel connector 1 LCD/inverter power connector 1 8-bit Digital I/O connector 1 front audio connector for line-out and mic-in jacks 1 CD-in connector 1 S/PDIF connector 4 Serial ATA connectors 1 44-pin IDE connector 1 24-pin ATX power connector 1 front panel connector 2 fan connectors

BIOSAMI BIOS - 64Mbit SPI BIOS

ENERGY EFFICIENT DESIGNACPI v2.0 specification System Power Management Wake-On-Events include: - Wake-On-PS/2 KB/Mouse - Wake-On-USB KB/Mouse - Wake-On-LAN - Wake-On-Ring - RTC timer to power-on the system CPU stopped clock control AC power failure recovery

DAMAGE FREE INTELLIGENCEMonitors CPU/system temperature and overheat alarm Monitors Vcore/5V/1.05V/1.5V/12V/3.3V/3.3VSB/VBAT voltages and failure alarm Monitors CPU/chassis/1st fan fan speed and failure alarm Read back capability that displays temperature, voltage and fan speed Watchdog timer function

POWER CONSUMPTION

41.58 W with i7-620M at 2.67GHz and 2x 2GB DDR3 SODIMM TEMPERATUREOperating: 0oC to 60oC Storage: -20oC to 85oC

HUMIDITY10% to 90%

DIMENSIONS

Mini-ITX form factor 170mm (6.7") x 170mm (6.7")

CERTIFICATIONSCE FCC Class B UL RoHS
