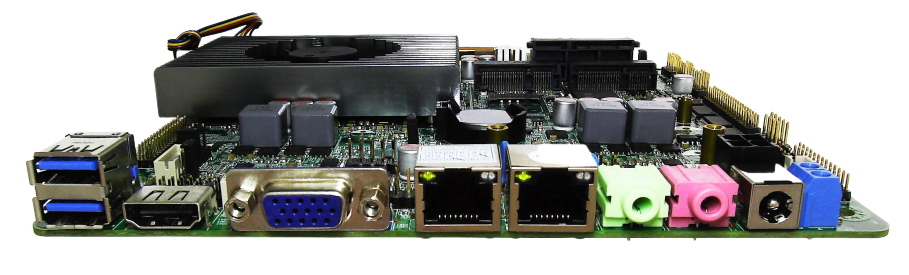

JIW-A170-COM*6

작성자 사진: 조나단씨엔티조나단씨엔티

최종 수정일: 2020년 11월 13일


KC인증 R-REM-JPW-MITX-A170

모바일CPU 4,5세대/I5-4200U/COM*6(RS232*6)/LVDS








Features

>> Intel Core i5 4200/4210U 1.7GHz CPU

>> DDR3 1333/1600MHz Memory (Max.32GB)

>> Supports Display HDMI, VGA, LVDS

>> 2*LAN, 6*RS232, RTC, Auto Power-On

>> 1*MSATA, 1* Mini-PCIe, 4*USB2.0

>> 12V DC input








CPU

- Intel Core i5-4200U 2.6G

RAM

- 1 x DDR3 So-DIMM 1333/1600MHz SDRAM (Max. 8GB)

Display

- Intel HD Graphics 4400

- 1 x HDMI, 1 x LVDS, 1 x VGA

Ethernet

- 10/100/1000Mbps

- 2 x RJ45(RTL8111F Gigabit)

- Wake on LAN

BIOS

- AMI 64Mbit Flash ROM

Storage

- 2 x SATA 3.0

- 1 x Mini PCIE port(for MSATA SSD)

Audio

- Realtek HD ALC662

Expansion

- 1 x Mini-PCIE, Support WIFI/3G module

- 1 x MSATA Support SSD/WIFI

Rear I/O

- 2 x USB3.0, 1 x HDMI, 1 x VGA, 2 x LAN

- 1 x Line-out, 1 x Mic-in, 1 x DC-IN

Power

- 12V DC in

Mechanical&Environmental

- Mini-ITX : 170mm x 170mm

Temperature : '-10℃~50℃, Humidity : 5 ~ 95% ​

OS

- Windows 7 , Windows 8 , Windows 10, Linux
